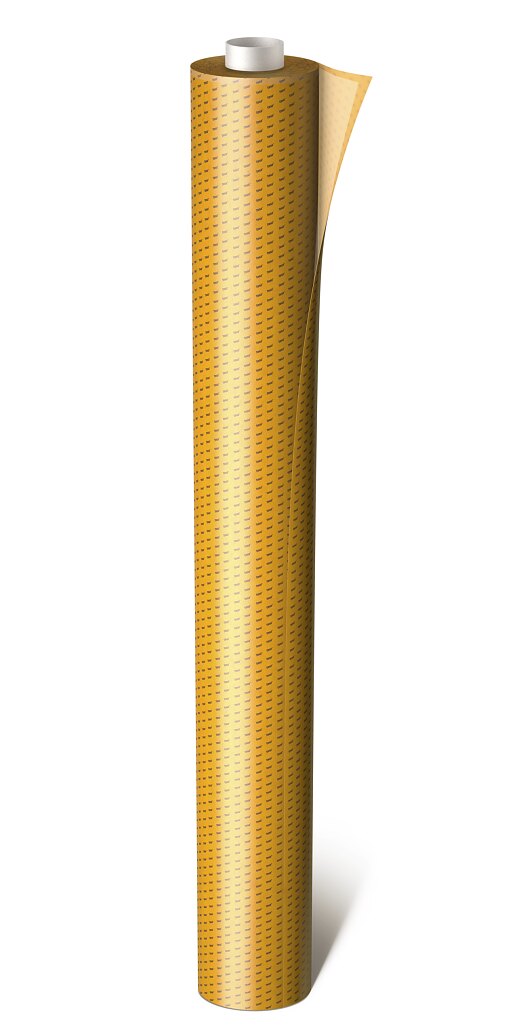

tesa® 75505 Transfer 50µm

50 μm double-sided tackified acrylic

Product description

tesa® 4965 Transfer is a conformable, tackified acrylic transfer tape with a thickness of 50 μm. It is equipped with our proven and well-known tesa® 4965 adhesive, which is transparent, ageing resistant and has a high initial tack. tesa® 4965 Transfer therefore offers very good immediate grab to uneven surfaces and is suitable for a wide range of applications, such as lamination of lightweight, thin materials. Several products are equipped with this unique and high performing tesa® 4965 adhesive, and together these products make up Team 4965. This double-sided film tape assortment helps to easily select the most efficient tape based on customer demands, products, and processes. tesa® 4965 Transfer 50 μm can be ordered using order number tesa® 75505. Explore the benefits of the full tesa® 4965 assortment here: https://www.tesa.com/en/industry/general-applications/mounting/team-4965-assortment.



Application Fields

tesa® 4965 Transfer is suitable for mounting and lamination applications of flexible materials and lightweight parts.

Example applications are:

  • Mounting of lightweight parts and materials
  • Mounting of foams, felts, fabrics and textiles
  • Lamination of insulation materials
  • Mounting of flooring systems
  • Membrane switch mounting
  • Splicing



Product Construction

Type of liner glassine
Weight of liner 80 g/m²
Backing material none
Type of adhesive tackified acrylic
Colour of liner brown/blue logo
Total thickness 50 µm
Thickness of liner 70 µm
Colour transparent

Properties / Performance Values

Humidity resistance very good
Temperature resistance long term duration 100 °C
Temperature resistance short term duration 200 °C
Tack good
Temperature resistance min. -40 °C
Ageing resistance (UV) very good

Adhesion to Values

Adhesion to Steel (initial) 8 N/cm
Adhesion to PE (initial) 2 N/cm
Adhesion to PC (after 14 days) 9.5 N/cm
Adhesion to PS (after 14 days) 9 N/cm
Adhesion to ABS (initial) 8 N/cm
Adhesion to PP (after 14 days) 4 N/cm
Adhesion to Aluminium (after 14 days) 7.5 N/cm
Adhesion to PET (after 14 days) 7 N/cm
Adhesion to PE (after 14 days) 3.5 N/cm
Adhesion to Steel (after 3 days) 8 N/cm
Adhesion to Aluminium (initial) 7 N/cm
Adhesion to ABS (after 14 days) 9 N/cm
Adhesion to PC (initial) 9 N/cm
Adhesion to PVC (initial) 7 N/cm
Adhesion to PS (initial) 7 N/cm
Adhesion to PP (initial) 2 N/cm
Adhesion to Steel (after 14 days) 8.5 N/cm
Adhesion to PVC (after 14 days) 11 N/cm

Additional Info

Liner variants:PV12: transparent PET liner (75 µm; 105 g/m²)PV20: branded brown paper liner (70 μm; 80 g/m²)


tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
