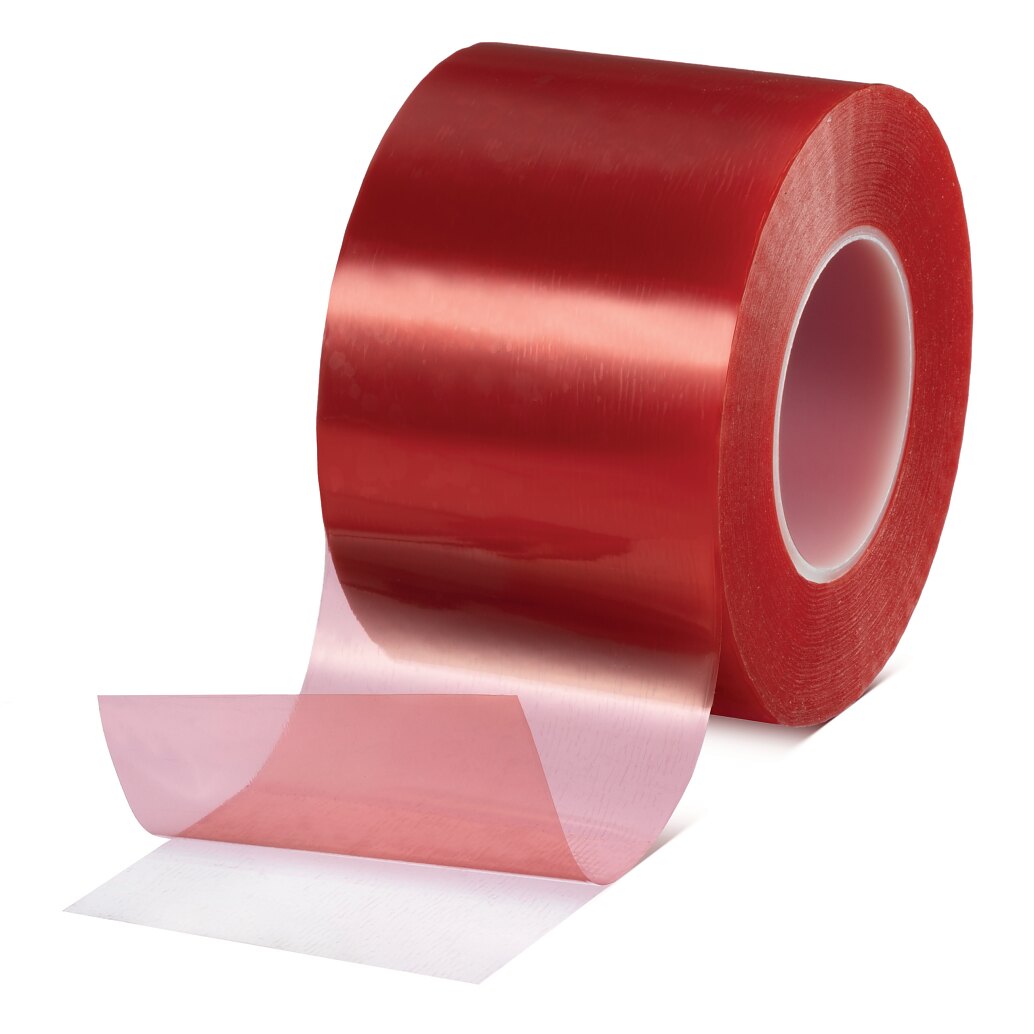

tesa® 59650 - Team 4965 Thin
160µm double sided transparent film tape Also referred to as order number tesa® 59650
Product description
tesa® 4965 Thin is a transparent double-sided self-adhesive tape consisting of a PET backing and a modified acrylic adhesive and is based on a patented and protected product formulation. Several products are equipped with this unique and high performing product design and together these products make up Team 4965. This double-sided film tape assortment helps to easily select the most efficient tape based on customer demands, products, and processes. Order tesa® 4965 Thin using order number tesa® 59650. Explore the benefits of the full tesa® 4965 assortment here: https://www.tesa.com/en/industry/general-applications/mounting/team-4965-assortment
tesa® 4965 Thin features:
tesa® 4965 Thin features:
- Extremely high holding power even at elevated temperatures
- Superior converting performance due to strong PET backing and reduced adhesive mass flow
- Good bonding performance even to LSE materials
Application Fields
- Mounting lenses to mobile phone housings
- Mounting of ABS plastic parts in the automotive industry
- Mounting of decorative profiles and mouldings in the furniture industry
Product Construction
| Type of adhesive | tackified acrylic |
| Type of liner | MOPP |
| Colour of liner | red |
| Weight of liner | 72 g/m² |
| Total thickness | 160 µm |
| Thickness of liner | 80 µm |
| Backing material | PET film |
| Colour | transparent |
Properties / Performance Values
| Elongation at break | 50 % |
| Static shear resistance at 23°C | good |
| Chemical resistance | good |
| Humidity resistance | very good |
| Tack | good |
| Tensile strength | 20 N/cm |
| Ageing resistance (UV) | very good |
| Static shear resistance at 40°C | good |
| Temperature resistance long term duration | 100 °C |
| Softener resistance | good |
| Temperature resistance short term duration | 200 °C |
Adhesion to Values
| Adhesion to Steel (initial) | 11.3 N/cm |
| Adhesion to PE (initial) | 5.2 N/cm |
| Adhesion to PC (after 14 days) | 13.1 N/cm |
| Adhesion to PS (after 14 days) | 11.1 N/cm |
| Adhesion to ABS (initial) | 9.8 N/cm |
| Adhesion to ABS (after 14 days) | 10.8 N/cm |
| Adhesion to PP (after 14 days) | 7 N/cm |
| Adhesion to PET (after 14 days) | 10.5 N/cm |
| Adhesion to Aluminium (after 14 days) | 12.2 N/cm |
| Adhesion to PC (initial) | 11.7 N/cm |
| Adhesion to PVC (initial) | 8.9 N/cm |
| Adhesion to PE (after 14 days) | 5.7 N/cm |
| Adhesion to PS (initial) | 10.2 N/cm |
| Adhesion to PET (initial) | 9.3 N/cm |
| Adhesion to Aluminium (initial) | 9.6 N/cm |
| Adhesion to PP (initial) | 5.3 N/cm |
| Adhesion to Steel (after 14 days) | 13.4 N/cm |
| Adhesion to PVC (after 14 days) | 11.9 N/cm |
Additional Info
According to VDA278 analysis, tesa® 4965 Thin does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
