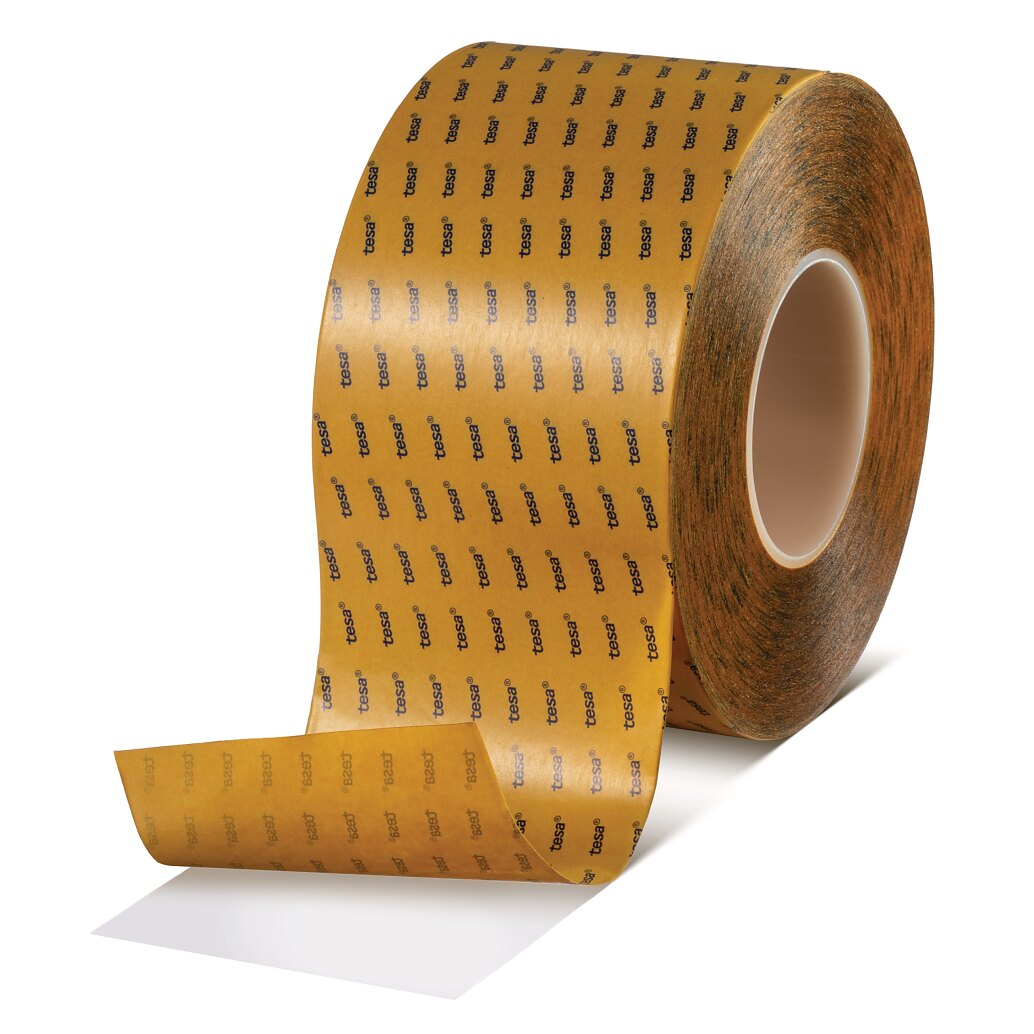

tesa® 59651 - Team 4965 Thick

300µm double sided transparent film tape

Product description

tesa® 4965 Thick is a transparent double-sided self-adhesive tape consisting of a PET backing and a modified acrylic adhesive and is based on a patented and protected product formulation. Several products are equipped with this unique and high performing product design and together these products make up Team 4965.
This double-sided film tape assortment helps to easily select the most efficient tape based on customer demands, products, and processes. Order tesa® 4965 Thick using the product number tesa® 59651. Explore the benefits of the full tesa® 4965 assortment here. tesa® 4965 Thick features:
  • Thickness: 300µm
  • High bonding strength
  • High resistance to demanding environmental conditions
  • Good handling performance in converting processes

Application Fields

  • Bumper rail mounting
  • Bonding door elements
  • General mounting and lamination

Product Construction

Type of adhesive modified acrylic
Type of liner paper
Colour of liner brown/blue logo
Weight of liner 80 g/m²
Total thickness 300 µm
Thickness of liner 69 µm
Backing material PET film
Colour transparent

Properties / Performance Values

Elongation at break 50 %
Static shear resistance at 23°C good
Humidity resistance very good
Tensile strength 20 N/cm
Ageing resistance (UV) very good
Static shear resistance at 40°C good
Temperature resistance long term duration 100 °C
Temperature resistance short term duration 200 °C

Adhesion to Values

Adhesion to Steel (initial) 13.8 N/cm
Adhesion to PE (initial) 6 N/cm
Adhesion to PC (after 14 days) 14.3 N/cm
Adhesion to PC (initial) 12.6 N/cm
Adhesion to PE (after 14 days) 6.4 N/cm
Adhesion to Steel (after 14 days) 14.5 N/cm

Additional Info

Liner variants:
PV20: branded brown paper liner (69μm; 80g/m²)
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
