Product Construction
Backing material | PET film |
Color | โปร่งใส |
Color of liner | สีแดง |
Thickness of liner | 80 µm |
Total thickness | 205 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: MOPP |
Weight of liner | 72 g/m² |
เทปปิดผนึกกล่อง กาวสองหน้า ผสมผสานด้วยเทปเปิดกล่อง

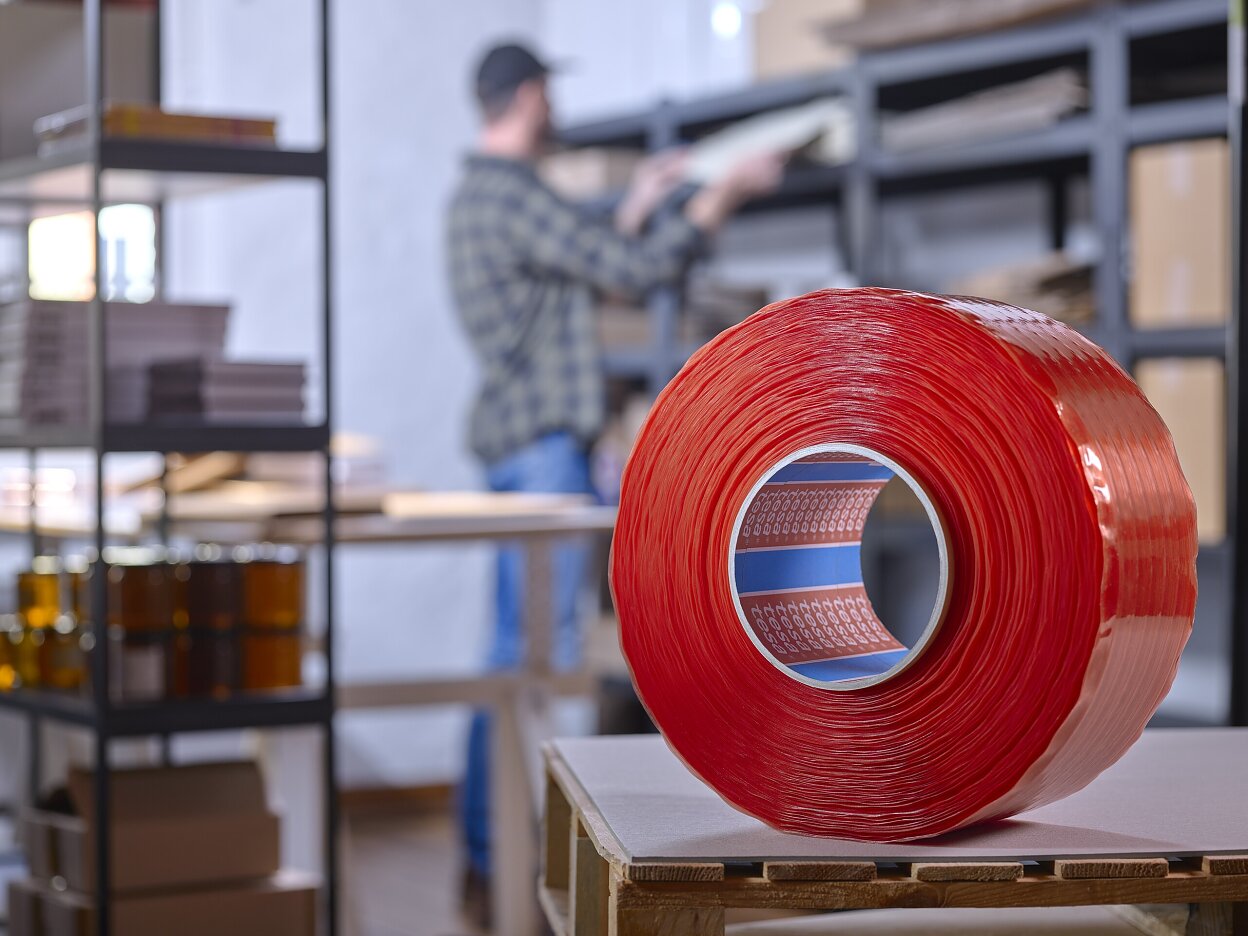

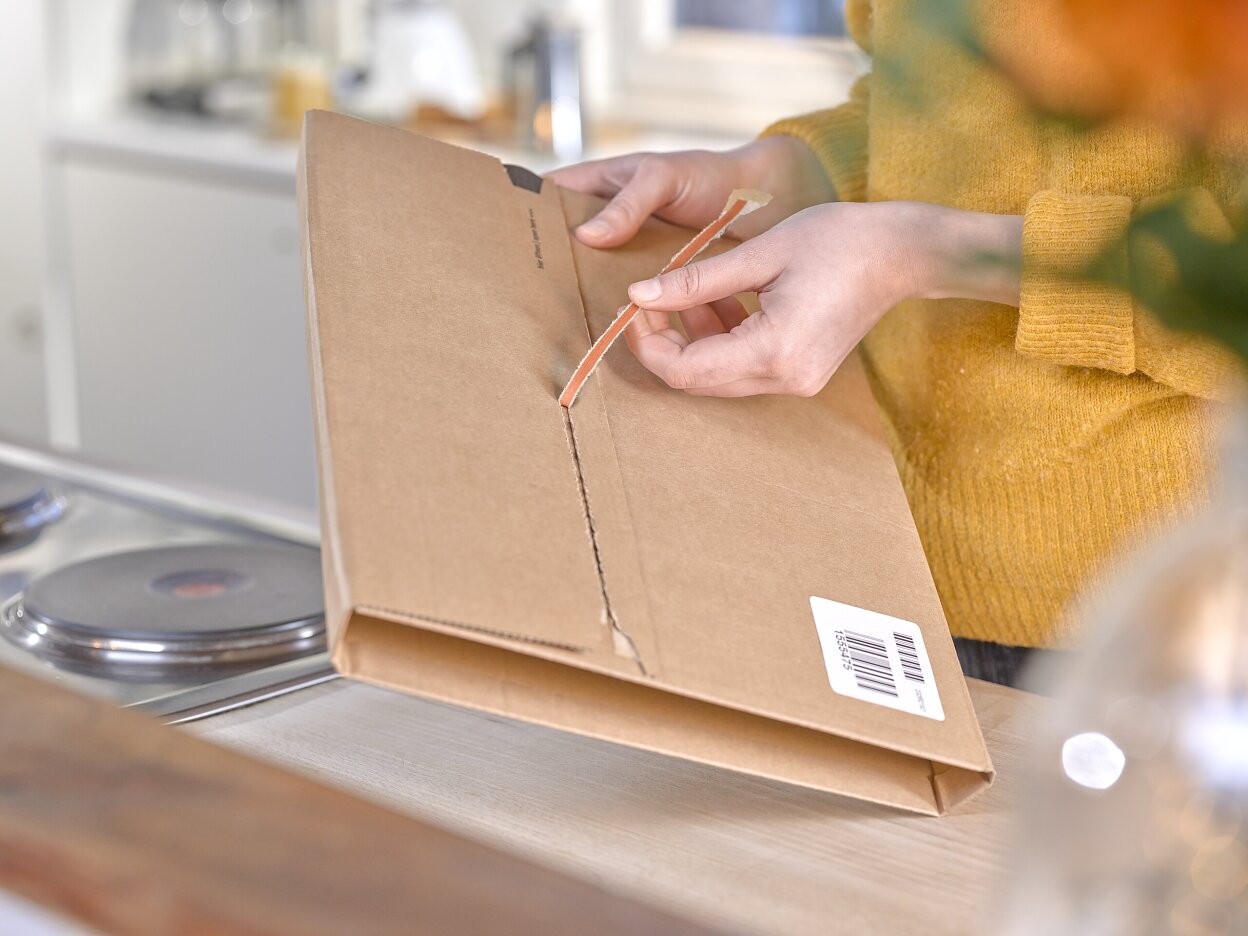

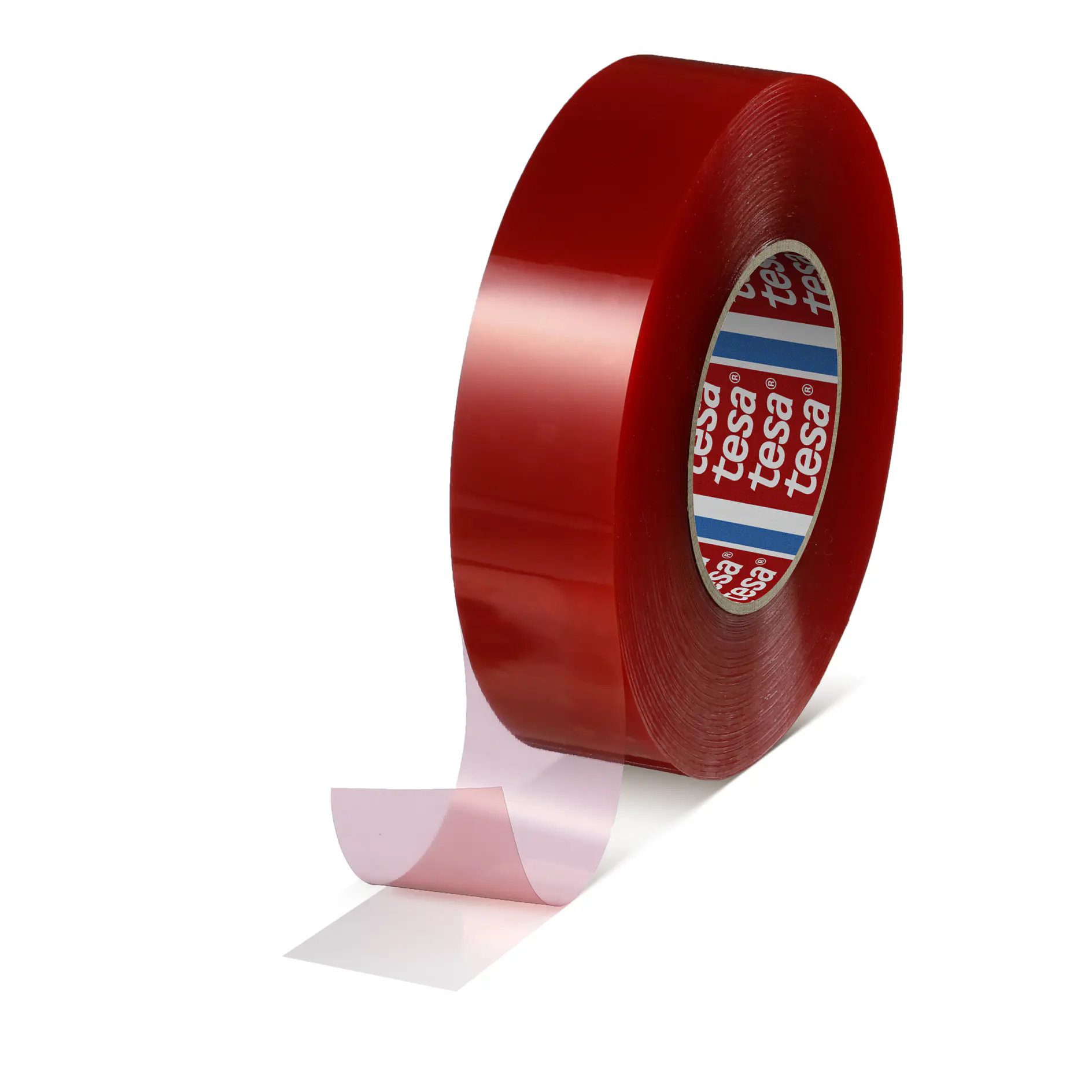

tesa® Combitape เป็นเทปกาวสองด้าน โปร่งใส พร้อมด้วย backing ชนิด PET และกาวtackified acrylic. tesa® Combitape จะมาพร้อมกับ fingerlift (ส่วนยื่นขยายของ liner) และ tear-tape
tesa® Combitape ได้รับการออกแบบมาสำหรับกล่องกระดาษลูกฟูกและมีคุณสมบัติดังนี้:
Backing material | PET film |
Color | โปร่งใส |
Color of liner | สีแดง |
Thickness of liner | 80 µm |
Total thickness | 205 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: MOPP |
Weight of liner | 72 g/m² |
Backing material | PET film |
Color | โปร่งใส |
Color of liner | สีแดง |
Thickness of liner | 80 µm |
Total thickness | 205 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: MOPP |
Weight of liner | 72 g/m² |
Elongation at break | 30 % |
Tensile strength | 130 N/cm |
Humidity resistance | ดีมาก |
Static shear resistance at 23°C | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Ageing resistance (UV) | ดี |
Tack | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 100 °C |
Chemical resistance | ดี |
Softener resistance | ดี |
ความต้านทานความร้อนที่อุณหภูมิต่ำสุด | -40 °C |
Static shear resistance at 40°C | ดีมาก |
Elongation at break | 30 % |
Tensile strength | 130 N/cm |
Humidity resistance | ดีมาก |
Static shear resistance at 23°C | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Ageing resistance (UV) | ดี |
Tack | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 100 °C |
Chemical resistance | ดี |
Softener resistance | ดี |
ความต้านทานความร้อนที่อุณหภูมิต่ำสุด | -40 °C |
Static shear resistance at 40°C | ดีมาก |
Adhesion to ABS (initial) | 10.3 N/cm |
Adhesion to ABS (after 14 days) | 12 N/cm |
Adhesion to Aluminium (initial) | 9.2 N/cm |
Adhesion to Aluminium (after 14 days) | 10.6 N/cm |
Adhesion to PC (initial) | 12.6 N/cm |
Adhesion to PC (after 14 days) | 14 N/cm |
Adhesion to PE (initial) | 5.8 N/cm |
Adhesion to PE (after 14 days) | 6.9 N/cm |
Adhesion to PET (initial) | 9.2 N/cm |
Adhesion to PET (after 14 days) | 9.5 N/cm |
Adhesion to PP (initial) | 6.8 N/cm |
Adhesion to PP (after 14 days) | 7.9 N/cm |
Adhesion to PS (initial) | 10.6 N/cm |
Adhesion to PS (after 14 days) | 12 N/cm |
Adhesion to PVC (initial) | 8.7 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 11.5 N/cm |
Adhesion to Steel (after 14 days) | 11.8 N/cm |
Adhesion to ABS (initial) | 10.3 N/cm |
Adhesion to ABS (after 14 days) | 12 N/cm |
Adhesion to Aluminium (initial) | 9.2 N/cm |
Adhesion to Aluminium (after 14 days) | 10.6 N/cm |
Adhesion to PC (initial) | 12.6 N/cm |
Adhesion to PC (after 14 days) | 14 N/cm |
Adhesion to PE (initial) | 5.8 N/cm |
Adhesion to PE (after 14 days) | 6.9 N/cm |
Adhesion to PET (initial) | 9.2 N/cm |
Adhesion to PET (after 14 days) | 9.5 N/cm |
Adhesion to PP (initial) | 6.8 N/cm |
Adhesion to PP (after 14 days) | 7.9 N/cm |
Adhesion to PS (initial) | 10.6 N/cm |
Adhesion to PS (after 14 days) | 12 N/cm |
Adhesion to PVC (initial) | 8.7 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 11.5 N/cm |
Adhesion to Steel (after 14 days) | 11.8 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
