Product Construction
Backing material | conductive woven |
Color | สีเทา |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 120 µm |
Total thickness | 100 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PE-coated paper |
เทป woven สีเทา กาวสองหน้า นำไฟฟ้า 100µm

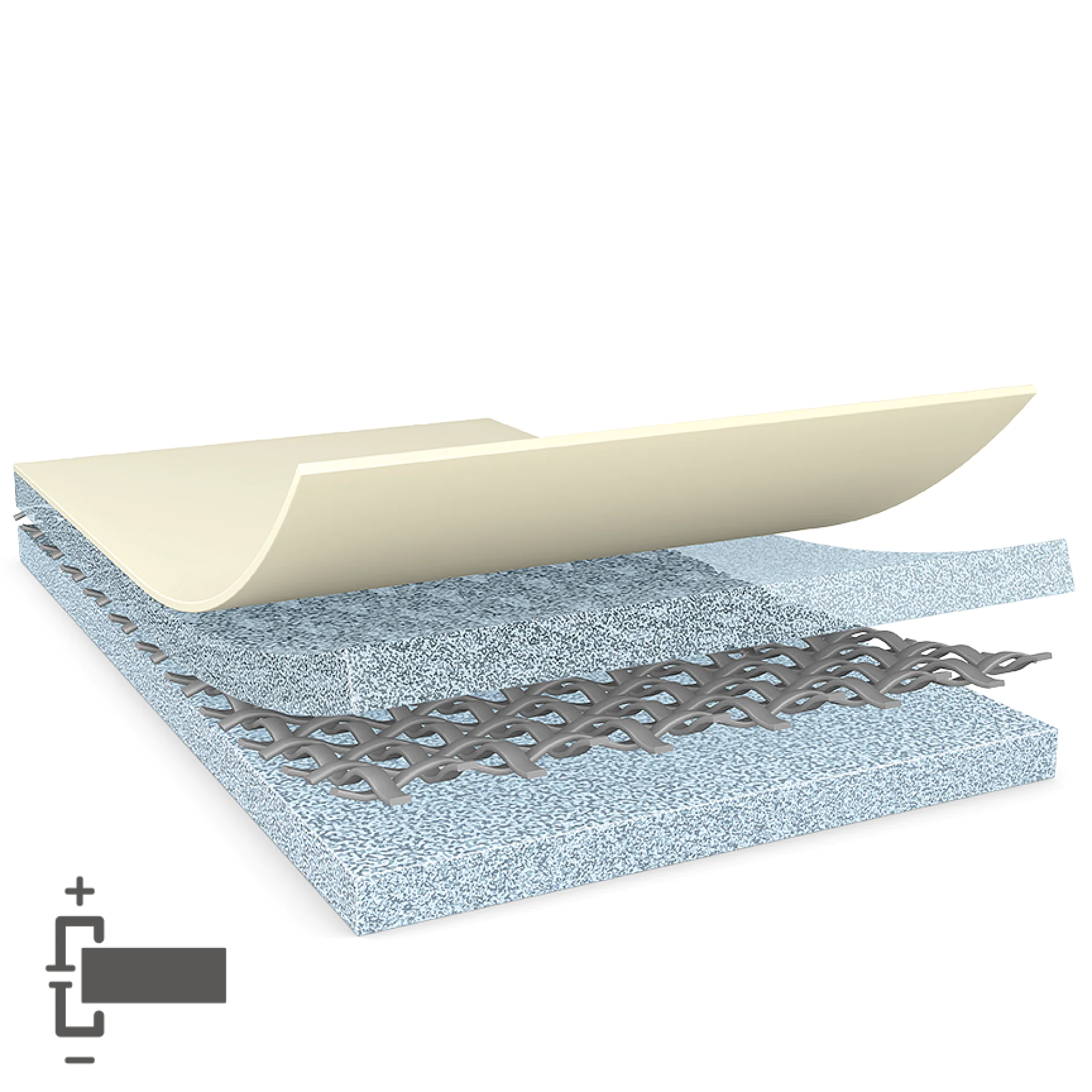

tesa® 60254 เป็นเทปกาวสองหน้า สีเทา นำไฟฟ้า ระกอบด้วย backing ชนิด electrically conductive woven เคลือบด้วยกาวอคริลิคนำไฟฟ้า
tesa® 60254 คุณสมบัติพิเศษ.
Backing material | conductive woven |
Color | สีเทา |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 120 µm |
Total thickness | 100 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PE-coated paper |
Backing material | conductive woven |
Color | สีเทา |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 120 µm |
Total thickness | 100 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PE-coated paper |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Release of liner | ลอกง่าย |
Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Static shear resistance at 23°C | กลาง |
Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
Static shear resistance at 40°C | ต่ำ |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Release of liner | ลอกง่าย |
Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Static shear resistance at 23°C | กลาง |
Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
Static shear resistance at 40°C | ต่ำ |
Adhesion to Steel (after 14 days) | 10.4 N/cm |
Adhesion to Steel (after 14 days) | 10.4 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
